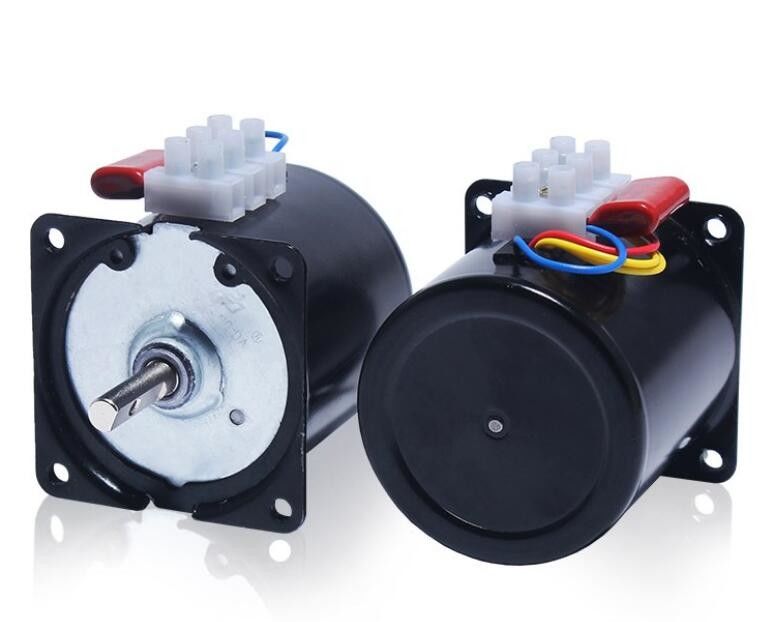

AC Synchronous Motor 68KTYZ AC220V 28W

Features:

• Mainly used in instrument, automation, stage lamps and advertising display equipment, curtain automatic control, automatic voltage regulator, etc.
• Small volume but large torque.
• Motor gets constant under the rated frequency, not affected by voltage.
• With copper wire production, metal gear, constant speed.
• This synchronous motor is stable, durable, and compatible.

Specification:
Model: 68KTYZ
Material: Metal
Current: 0.5A
Voltage: AC220V
Frequency: 50Hz~60Hz
Power: 28W

Speed(Optional): 2.5RPM, 5RPM,10RPM,15RPM,20RPM, 30RPM, 50RPM,60RPM,80RPM,110RPM
Torque(NM):5(2.5RPM),3.6(5RPM),2.6(10RPM),2(15RPM),1.5(20RPM),1.3(30RPM)

0.6(50RPM),0.5(60RPM),0.4(80RPM),(110RPM)

Shaft Type: D-Type
Weight: 532g


Forward Wire Connection:

Reverse Wire Connection:
