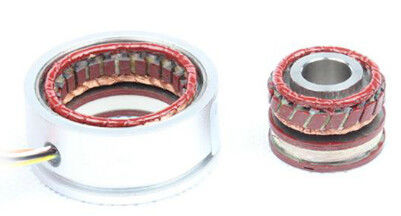

LJ36.83-2E-K9.52 resolver manafacture China factory

Application:texile machine

outer diameter:36mm,  Inner diameter:8mm,  Pole of Pairs:1  Input Voltage:7VAC Input Impedance:≥150Ω±10%  Output Voltage:3.5V±10%

TYPE:LJTX36-01-D8

1.Electrical parameters

Pole of Pairs:2

Input Voltage:7V(AC)

Input Impedance:≥150Ω±10%

Input Frequency:10KHz

Output Voltage:3.5V±10%

Accuracy:≤±10'

Phaseshift:≤±10°

Residual Voltage:20mV

2.Wiring Diagram

3.Selection

(1)example:LJ36.83-2E-K9.52

(A)Pole of Pairs:2
(B)Inner diameter:9.52mm
(C)Outer diameter:36.83mm
4.Dimension
