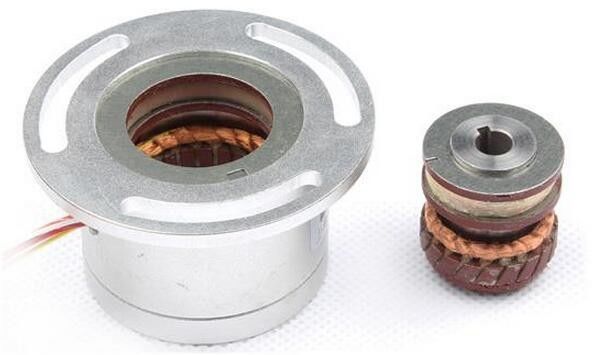

LJ56-1C-K8,wound-rotor resolver

Application:Texile machine,Wind power machinery,New energy vehicles,Electric car,Aerospace

outer diameter:56mm, Inner diameter:8mm, Pole of Pairs:1 Input Voltage:7VAC Input Impedance:(150±10%)Ω Output Voltage:3.5V±10%

TYPE:LJ56-1C-K8

1.Electrical parameters

Pole of Pairs:1

Input Voltage:7V(AC)

Input Impedance:(150±10%)Ω

Input Frequency:10KHz

Output Voltage:3.5V±10%

Accuracy:≤±10'

Phaseshift:≤±10°

Residual Voltage:20mV

2.Wiring Diagram

3.Selection

(1)example:LJ56-1C-K8

(A)Pole of Pairs:1
(B)Inner diameter:8mm
(C)Outer diameter:56mm
4.Dimension
