Application:Metallurgical machinery and equipment
outer diameter:36mm, Inner diameter:8mm, Pole of Pairs:1 Input Voltage:7VAC Input Impedance:150Ω±10% Output Voltage:3.5V±10%

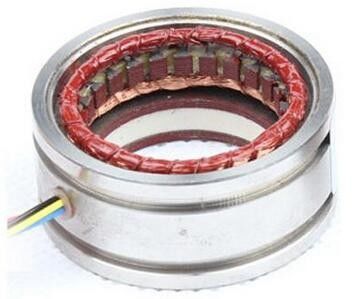

TYPE:LJML36-1D-S8
1.Electrical parameters
Pole of Pairs:1
Input Voltage:7V(AC)
Input Impedance:150Ω±10%
Input Frequency:10KHz
Output Voltage:3.5V±10%
Accuracy:≤±10'
Phaseshift:≤±10°
Residual Voltage:20mV
2.Wiring Diagram
3.Selection
(1)example:LJML36-1D-S8
(A)Pole of Pairs:1
(B)Inner diameter:8mm
(C)Outer diameter:36mm
4.Dimension
