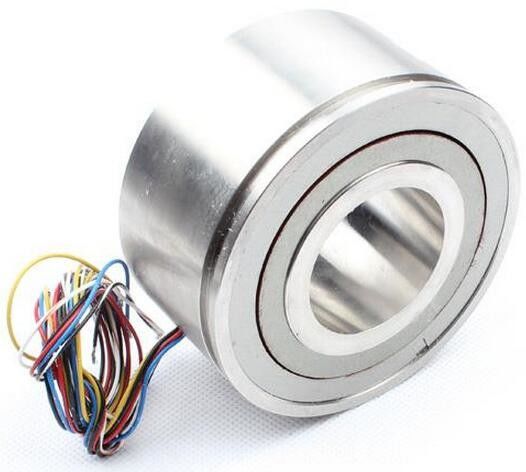

LJ90-1-K40 resolver manafacture China factory

LJ90-1-K40 resolver manafacture China factory

LJ90-1-K40 resolver manafacture China factory

Product Details:

Brand Name: LJ
Model Number: LJ90-1-K40

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Payment Terms: T/T, Western Union,Paypal
Contact Now
Detailed Product Description

LJ90-1-K40,wound-rotor resolver

Application:Texile machine,Wind power machinery,New energy vehicles,Electric car,Aerospace





outer diameter:90mm, Inner diameter:40mm, Pole of Pairs:1, Input Voltage:7VAC Input Impedance:(150±10%)Ω Output Voltage:3.5V±10%

TYPE:LJ90-1-K40

LJ90-1-K40 resolver manafacture China factory



1.Electrical parameters

Pole of Pairs:1

Input Voltage:7V(AC)

Input Impedance:(150±10%)Ω

Input Frequency:10KHz

Output Voltage:3.5V±10%

Accuracy:≤±10'

Phaseshift:≤±10°

Residual Voltage:20mV

2.Wiring Diagram

LJ52-1T-K8 resolver manafacture China factoryLJ52-1T-K8 resolver manafacture China factory

3.Selection

(1)example:LJ90-1-K40

(A)Pole of Pairs:1
(B)Inner diameter:40mm
(C)Outer diameter:90mm
4.Dimension

LJ90-1-K40 resolver manafacture China factory
