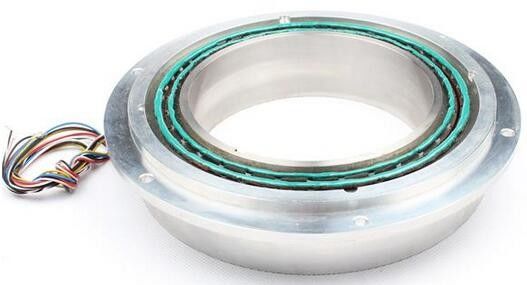

LJ310-1-K180 resolver manafacture China factory

LJ310-1-K180 resolver manafacture China factory

LJ310-1-K180 resolver manafacture China factory

Product Details:

Brand Name: LJ
Model Number: LJ310-1-K180

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Payment Terms: T/T, Western Union,Paypal
Contact Now
Detailed Product Description

LJ310-1-K180,wound-rotor resolver

Application:Texile machine,Wind power machinery,New energy vehicles,Electric car,Aerospace





outer diameter:310mm, Inner diameter:180mm, Pole of Pairs:1, Input Voltage:7VAC Input Impedance:(150±10%)Ω Output Voltage:3.5V±10%

TYPE:LJ310-1-K180

LJ310-1-K180 resolver manafacture China factory



1.Electrical parameters

Pole of Pairs:32

Input Voltage:4V(AC)

Input Impedance:(150±10%)Ω

Input Frequency:10KHz

Output Voltage:2V±10%

Accuracy:≤±20'

Phaseshift:≤±10°

Residual Voltage:20mV

2.Wiring Diagram

LJ52-1T-K8 resolver manafacture China factoryLJ52-1T-K8 resolver manafacture China factory

3.Selection

(1)example:LJ310-1-K180

(A)Pole of Pairs:1
(B)Inner diameter:180mm
(C)Outer diameter:310mm
4.Dimension

LJ310-1-K180 resolver manafacture China factory
